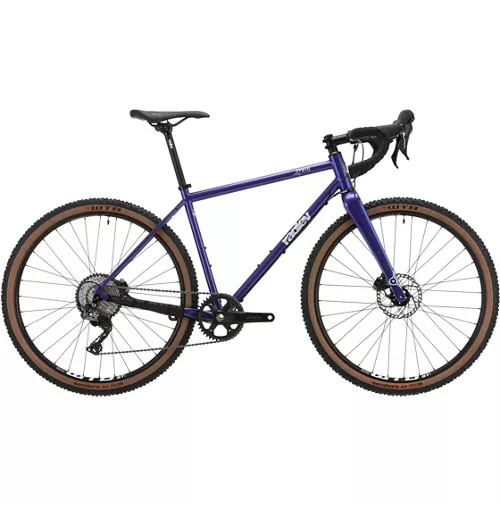

Ragley Trig Bike – Ultra Violet

Ragley Trig Bike

The Ragley Trig is your long-distance touring companion, off-road gravel trail riding weapon and daily commuting grafter. At its heart, this gravel adventure bike has an ultra-durable Chromoly (CrMo) frame that soaks up buzz from the terrain to increase rider comfort when riding off-road. This lightweight and stylish frameset is equipped with a Shimano GRX 1×11-Speed groupset that offers a wide-gear range for conquering steep climbs and all-day pedalling efficiency while GRX hydraulic disc brakes provide exceptional all-weather stopping power. It also rolls upon Nukeproof Neutron hubs laced into WTB ST i30 Tubeless Ready rims wrapped in 670b (27.5″) WTB Sendero all-terrain tyres.

The Trig has been a firm favourite for a massively diverse group of riders. We have seen them fully loaded for multi-day adventures, shod with slicks as an urban commuter, or just ridden stock for local lockdown sanity missions.

The Trig frameset features a 44mm headtube, multiple bottle cage mounts and tyre clearance to run any 700 or 650 gravel tyre option you want (and up 2.1” wide MTB tyres on 27.5” wheels). Want to get a little rowdier with your drop-bar endeavours? It’s even dropper post compatible for future off-road biased upgrades.

The frame is engineered from custom triple butted 4130 Chromoly steel tubing resulting in a frame that is lightweight and supple enough to provide comfort on longer trail rides whilst robust and stiff enough to take some serious abuse. The carbon fork features a 12mm thru axle and the mounting points you need to take to the backcountry.

We’re not going to pigeonhole the trig as gravel or adventure anymore. It’s all the same thing. We just made a super fun and reliable bike for you to go find your own adventure.

Features

• Frame: Ragley Trig 4130 Chromoly (CrMo)
• Fork: Ragley Carbon Disc Fork, 12mm x 100mm, Flat Mount
• Headset: FSA NO.9M,1 1/8-1.5 Tapered
• Compression Device: FSA TH-883-1 Compressor
• Handlebar: Ragley Alloy, 31.8mm, 48cm-400mm Wide, 50cm-420mm Wide, 52/55/58cm-440mm Wide
• Stem: Ragley, 31.8mm Clamp, 7 Degree Rise, 48 / 50cm:70mm, 52cm:80mm, 55 / 58cm:90mm
• Bar Tape: Ragley Black cork cushion tape with bar end plug
• Front Wheel: Nukeproof Neutron Hub, 12mm x 100mm, Sealed bearings, 32h, 6-bolt disc on a WTB ST i25 TCS 2.0 Rim 650b (taped for tubeless)
• Rear Wheel: Nukeproof Neutron Hub, 36 points of engagement, 142mm x 12mm, Sealed bearings, 32h, HG Freehub, 6-bolt disc on a WTB ST i25 TCS 2.0 Rim 650b (taped for tubeless)
• Front Thru Axle Spec: Diameter: 12mm, Pitch:1.5, Length:120mm
• Rear Thru Axle Spec: Diameter 12mm, Pitch 1.75, Axle Length 167mm, Thread Length: 20mm
• Front Tyre: WTB Sendero 650b x 47c Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
• Rear Tyre: WTB Sendero 650b x 47c Tan Sidewall, Dual DNA Compound, Lightweight Tubeless Casing, TCS Aramid Bead
• Chain: KMC X11-EPT, Quick-Link, 11-Speed
• Crankset: FSA Omega, 170mm
• Bottom Bracket: FSA BB-4000 Megaexo BSA
• Front Brake: Shimano GRX RX600 lever with RX400 calliper, 160mm RT66 rotor, Resin pads with fin
• Rear Brake: Shimano GRX RX600 lever with RX400 calliper, 160mm RT66 rotor, Resin pads with fin
• Rear Derailleur: Shimano GRX RX812 11-Speed, Shadow Plus
• Rear Shifter: Shimano RX600 11-Speed
• Drivetrain Cables: Shimano
• Cassette: Shimano SLX M7000 or XT M8000, 11-Speed, 11-42
• Saddle: Ragley Tracker
• Seat Post: Ragley 27.2mm x 400mm
• Seat Screw: Ragley 29.8mm
• Also included: Ragley Chain stay protector, tubeless valves
• 5 Year Warranty and lifetime crash replacement
• ISO 4210 Certified

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

• All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
