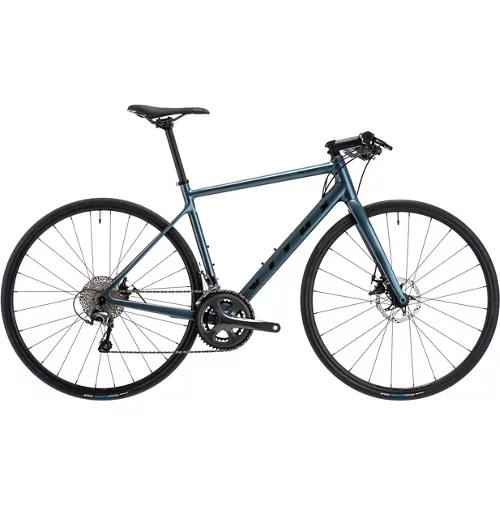

Vitus Zenium FB Road Bike (Tiagra)

Vitus Zenium FB Road Bike (Tiagra)

The Zenium Flat Bar (FB) Road Bike is engineered with a carbon frameset and equipped with a flat handlebar and a Shimano Tiagra 2×10-Speed groupset with mechanical disc brakes. The addition of a flat handlebar offers a relaxed, upright sitting position that is ideal for fitness cycling, leisurely sportif and charity events and long-distance endurance sessions. It also rolls fast and stable upon Vitus Shining rims wrapped in high-grip Kenda Kwick Roller Sport tyres.

Flat Handlebar Carbon Road Bike

The Vitus Zenium Flat Bar is a modern and sporty carbon road bike. Benefitting from the influence of the top-tier Vitus performance bikes and with features that make it a step up from entry level, the Zenium is the bike that will enable you to grow as a rider.

Carbon Frameset, Thru-Axles and Disc Brakes

The Zenium is loaded with great features. Firstly, the carbon frame is UCI-certified so you could, with a bit of training, race it in the Tour de France. Front and rear bolt-thru axles keep the handling predictable and contribute to the responsive feel and efficiency, especially when you are out of the saddle and working hard up the climbs. Dropped seat stays complete the modern look and allow for a touch more comfort through the seatpost on those longer rides. Disc brakes not only equip you with precise control but allow the frame to afford wider tyre clearance of up to 32mm.

Shimano Tiagra 2×10-Speed Groupset and Disc Brakes

This Zenium FB model is equipped with Shimano’s tried-and-tested Tiagra mechanical components while the flat bar setup brings comfort and stability without compromising the nippy feel of a carbon road bike. Cables are routed internally through a neat port in the downtube, protecting them from dirt and prolonging the performance of the components.

That satisfying and rewarding experience of riding a responsive carbon road bike is where the Zenium excels. It is poised to ignite the two most important qualities of a great ride – exhilaration and fun. Call it your race bike. Call it your sportive bike. Call it your commuter. Call it your all-rounder.

Features:

• Frame: Zenium Carbon, T700 UD Carbon, Flat Mount Disc Brake, Internal Cable Routing, 142 x 12mm Axle
• Fork: Zenium UD Carbon, Tapered Carbon Steerer, QR, Mudguard Mounts
• Headset: ACROS Aix 322 R3, Sealed Bearings, OD46, 41.8/28.6 – 47/33, 1 1/8” – 1 ½”, Integrated
• Handlebar: Vitus 6061 Aluminium Flat Bar, Back Sweep: 6 degrees, XS:640mm S:640mm M:640mm L:680mm XL:680mm XXL:680mm
• Stem: Vitus 6061 Aluminium, Bar Bore 31.8mm, +/- 7 degrees, XS:90mm S:100mm M:110mm L:120mm XL:120mm XXL:120mm
• Grip(Tape): Vitus Ergo Grip, With Plastic Lock Ring
• Front Rim: Vitus Shining, DB-X21, 700c, 24 Hole,
• Rear Rim: Vitus Shining, DB-X21, 700c, 28 Hole,
• Front Hub: Vitus KT, TX5F-12, 24h, 12 x 100mm, Centre Lock
• Rear Hub: Vitus KT, CRR6L4, 28h, 10/11 Speed, 12 x 142mm, Centre Lock
• Front Tyre: Kenda Kwick Roller Sport, 700c x 28c
• Rear Tyre: Kenda Kwick Roller Sport, 700c x 28c
• Spoke: 14G Stainless Steel, 16mm Nipple
• Chain: KMC X10, 10 Speed
• Crankset: Shimano Tiagra R4700, 50/34T, 10 Speed, XS:170mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL:175mm
• Bottom Bracket: Prestine PF30, PF30 with 24mm adapters
• F/brake Set: Shimano Tiagra Lever with TRP Spyre Disc Brake Caliper, BL-4700-R Lever, MD-C610-C Caliper, Flat Mount, Cable Actuated
• R/brake Set: Shimano Tiagra Lever with TRP Spyre Disc Brake Caliper, BL-4700-L Lever, MD-C610-C Caliper, Flat Mount, Cable Actuated
• Rotors: Tektro TR160, Front: 160mm, Rear: 160mm
• Front Derailleur: Shimano Tiagra R4700, FD-R4700, Braze-On, 2 x 10 Speed
• Rear Derailleur: Shimano Tiagra R4700, RD-R4700, 10 Speed
• Left Shifter: Shimano Tiagra R4700 Trigger, SL-R4700, Rapidfire Plus, 2 x 10 Speed
• Right Shifter: Shimano Tiagra R4700 Trigger, SL-R4700, Rapidfire Plus, 10 Speed
• Freewheel: Sunrace CS-RX0, 10 Speed, 11-32T
• Saddle: Vitus, Steel Rail
• Seat Post: Vitus 6061 Aluminium, 27.2mm x 350mm, 12mm Offset
• Seat Screw: Aluminium 31.8mm, Stainless Steel Bolt
• Weight: Medium: 9.3kg

Easy Assembly

When you order a bike, one of our trained mechanics will carefully prepare and pack your bike for shipping. Upon delivery, the assembly is simple and all necessary tools and plastic pedals are conveniently included in the box.

Depending on the delivery service and destination, bikes will either be delivered in a large or a small box. Below is a guide as to how your bike will arrive:

• All bikes for delivery within the UK and Republic of Ireland will be delivered in a large box, except for balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for delivery within the EU on a standard service will be delivered in a large box. If an express delivery option is chosen, your bike will be packed into a small box. Again, the exception is balance bikes and BMX bikes, which are always delivered in manufacturer’s boxes.
• All bikes for worldwide delivery outside the EU will be delivered in small boxes.

This video demonstrates assembly from a SMALL BOX.

This video demonstrates assembly from a LARGE BOX.

Please note that due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.
